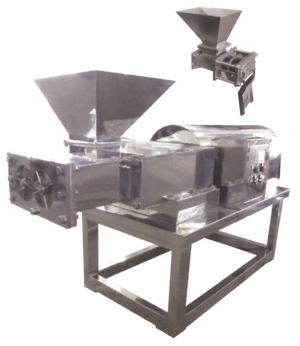

JZL Extrusion Granulator



Main application
The machine is suitable for the granules of different specifications in wet process in fields such as pharmacy, chemical, foodstuff, fodder, etc.

Working method
The particles are extruded from augers and steel plates of the machine, thus the particle size is regular with less fine powder. The product can keep long, so that the machine is especially suitable for the production of herb granules in pharmacy and foodstuff industries. The machine is made of stainless steel with surface polished, and easy to dismantle, assemble and clean.



Technical Data

 MODEL
model 60
model130
 central distance of two augers(mm)
60
130
wet material production capacity(kg/h)
10-150
20-350
Particle size of finished products(φmm)
0.5-3
0.5-3
 extrusion bearing speed(r/min)
65
55
motor power(kw)
2.2
5.5
weight(kg)
300
500
Overall size (L×W×H)(mm)
890×650×1460
900×660×1530
