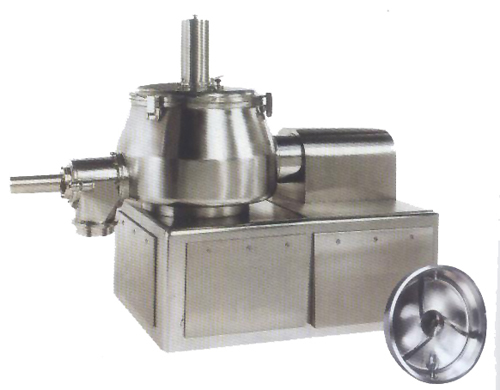

Main application     Accepting horizontal cylinder structure, the machine has reasonable design with airproof driving bearing that can be switch to water while washing. The granules look like balls with good fluidity. Compared with traditional process, 25% less bond can be saved and drying time can be shortened. The effect of 2 minutes of dry mixing and 1-4 minutes of granulation will be 4-5 times higher than that in traditional process. The whole operation, in accordance with GMP standard, has strict safety measures.

Work Flow

Working method     The particle material and bond will be mixed into humid material at the bottom of the cylinder tank, and then cut into uniform wet particles by the side high-speed cutting device.

Technical Data   MODEL model10 50  150   200  250   300  400     600   Volume(L) 10    50  150  200  250  300  400  600  Capacity 3     15    50   80   100  130  200  280  mixing speed(r/min)  300/600  200/400 180/270 180/270  180/270  140/220  106/155 80/120  mixing power(kw)  1.5/2.2  4/5. 5 6.5/8 9/11 9/11 13/16  18.5/22  22/30   cutting speed(r/min)  1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 cutting power(kw)  0.85/1.1 1.3/1.8  2.4/3   4.5/5.5   4.5/5.5  4.5/5.5  6.5/8    9/11
