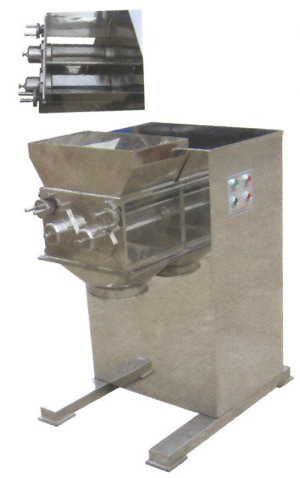

SYK double cylinders swing granulator

 Main application
The machine is developed on the basis of conventional swing granulator, can widely used forindustries of pharmaceutical,
chemical and foodstuff. It can make the wetpower material into kernel and crush the dry lump material and granulate them
quickly, it reach therr"GMp"rstandard and is the ideal machine in this field.
Working Method
The two cylinders swing to reciprocate in the same time by the mechanical rotating, makethe material be made into kernel
or crush ii, quickly. The machTne has the characteristics of easyto operate, high production, compact structure and small floor
area. The machine is made ofstainless steel.

Technical Data

model

100B

160B

Capacity(kg/h)

80-450

120-680

 motor power(kw)

2.2

 5.5

 Cylinder speed(r/min)

 55

55

swing angle(o)

 360

360

cylinder diameter(mm)

 Ф100×2

Ф160×2

 weight(kg)

 380

 650

 Overall size(L*W*H)

 900*650*1100

1200*800*1350
