Main uses
The machine is applied for the material pulverization of industries such as pharmaceutics, chemical and foodstuff, etc.
Working Method

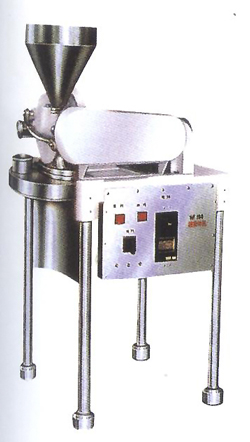

As a hammer pulverizer, the machine, with cool water jacket in crushing chamber, utilizes highspeed rotary hammer
to crush the raw material fed from feeding funnel and rotary conveyer. The whole machine, with easy structure, is made
of stainless steel, thus to make the pulverized material meet the GMP requirement. The pulverizing chamber is easy to
dismantle and cleaning.
Technical Parameters
|
Model
|
Model 180
|
Model 320
|
|
Capacity（kg/h）
|
10-90
|
50－300
|
|
Size of input granules（mm）
|
≤3
|
≤5
|
|
Fineness of products
|
40-200
|
40-200
|
|
Speed of principal axis（r/min）
|
10000
|
6800
|
|
Main power（kw）
|
2.2
|
7.5
|
|
Feeding power（kw）
|
0.18
|
0.18
|
|
Weight（kg）
|
250
|
380
|
|
Overall size （L×W×H）（mm）
|
800×550×1126
|
1100×650×1550
|
